Features of Winding Type Single BUP Super Capacitor Car Audio
1.Compact 2.7 V super capacitor with outstanding capacitance
2.Cylindrical structure delivers ultra-low internal resistance
3.Conforms to RoHS and REACH standards, no hazardous materials included
4.Long cycle life, suitable for medium and high power discharge scenarios
5.Peak withstand voltage up to 3.0V
6.Wide working temperature range: -40℃ to +65℃

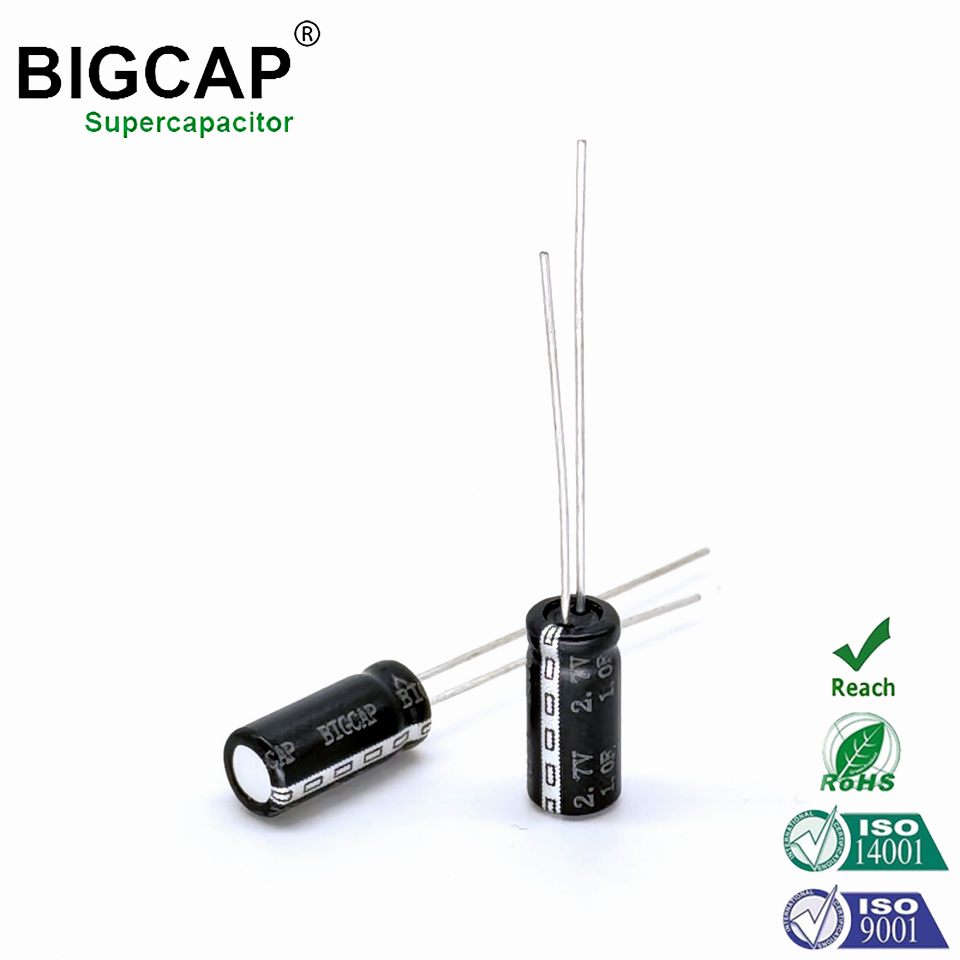

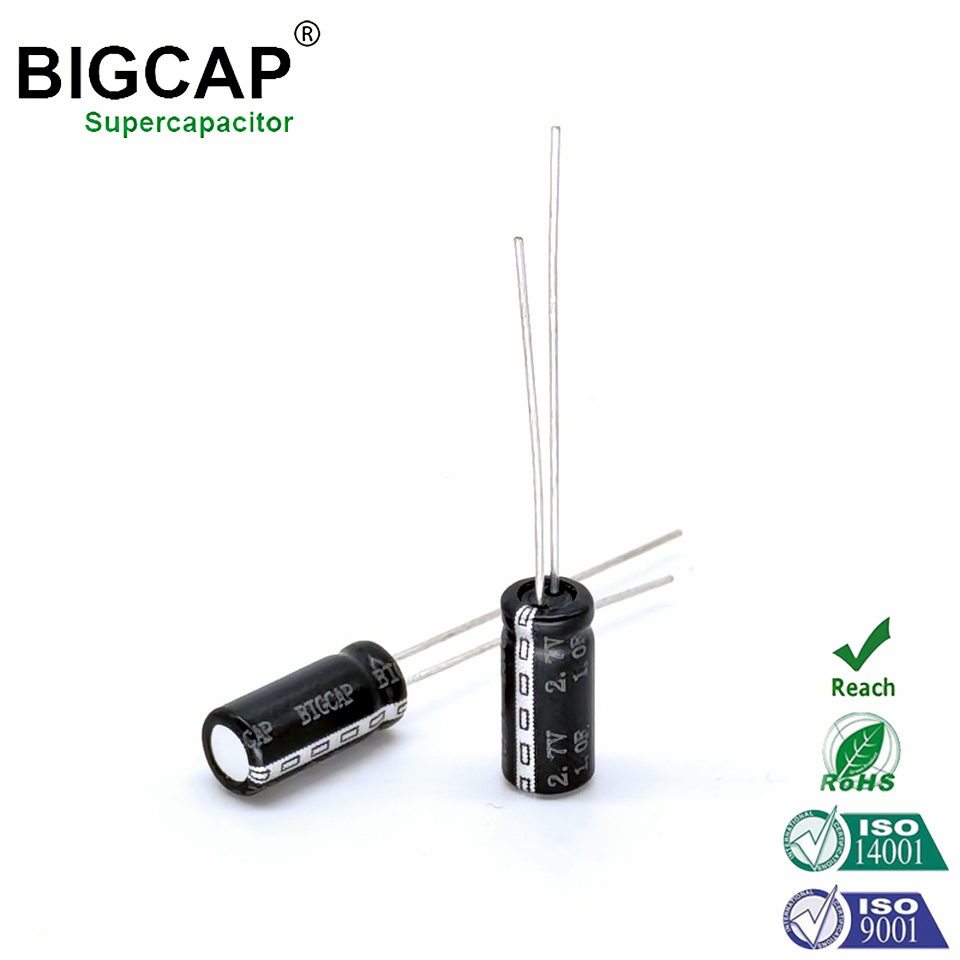

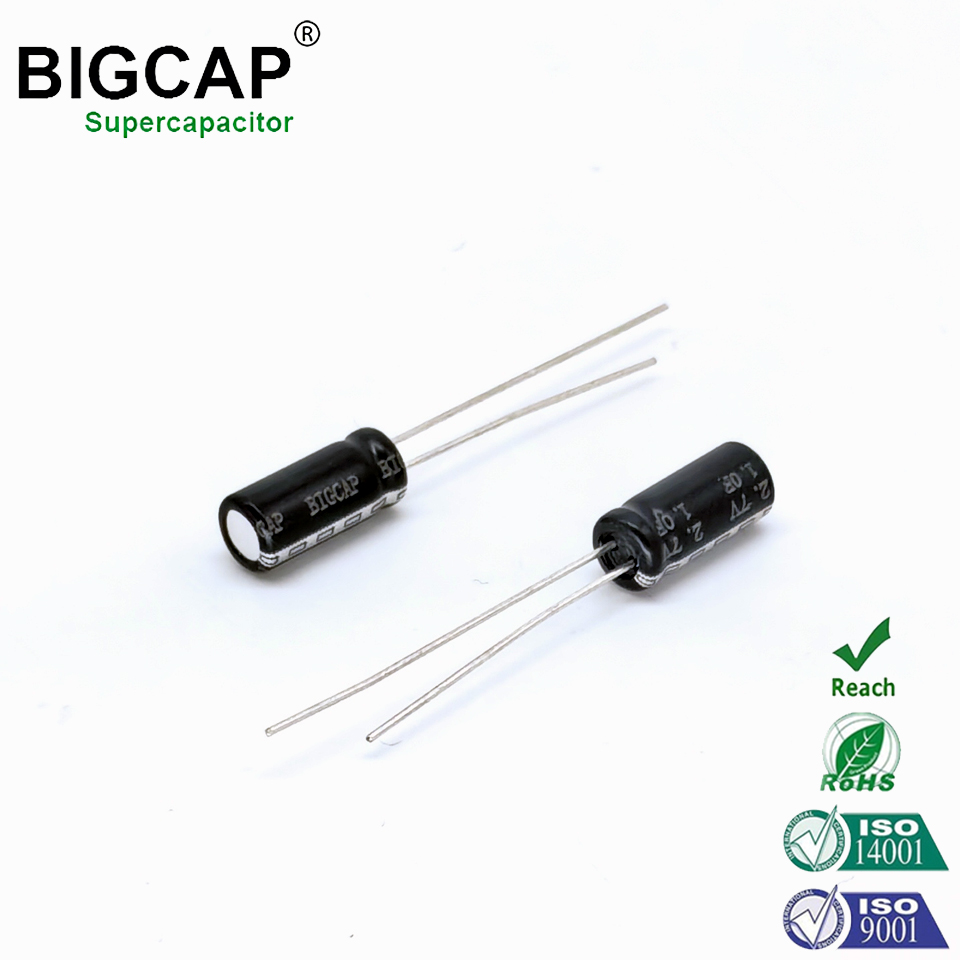

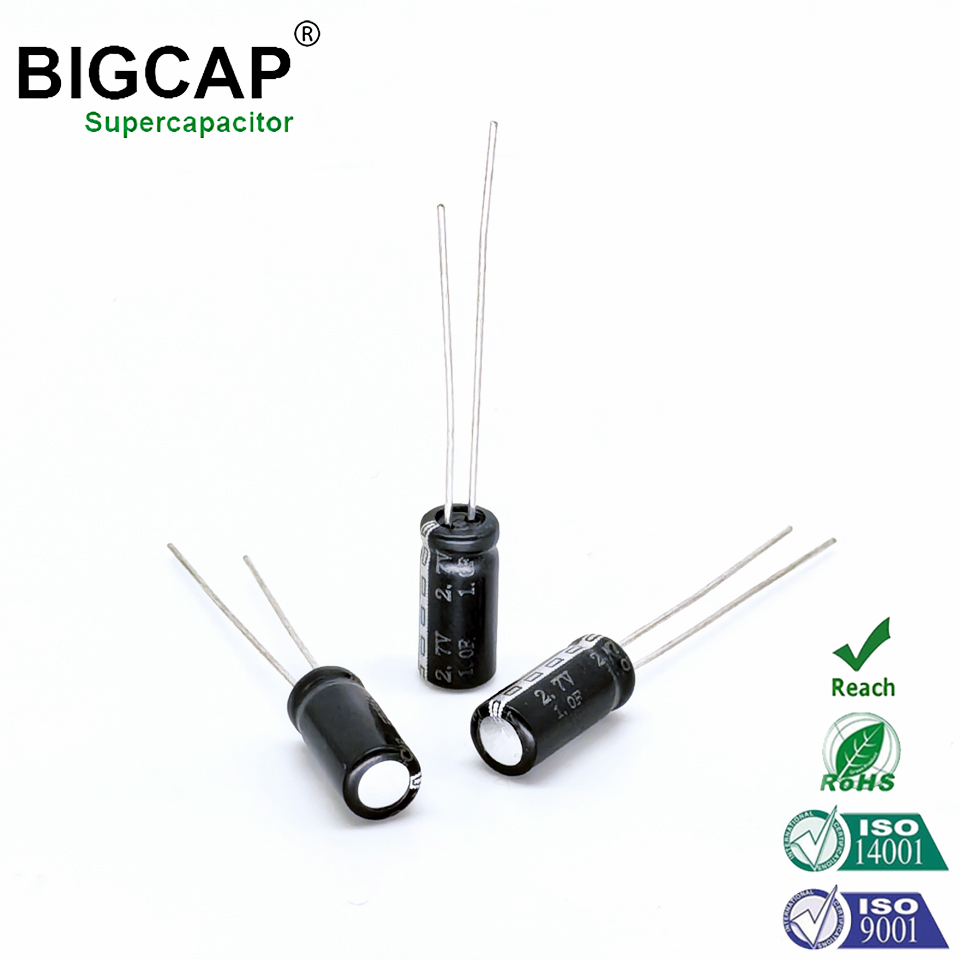

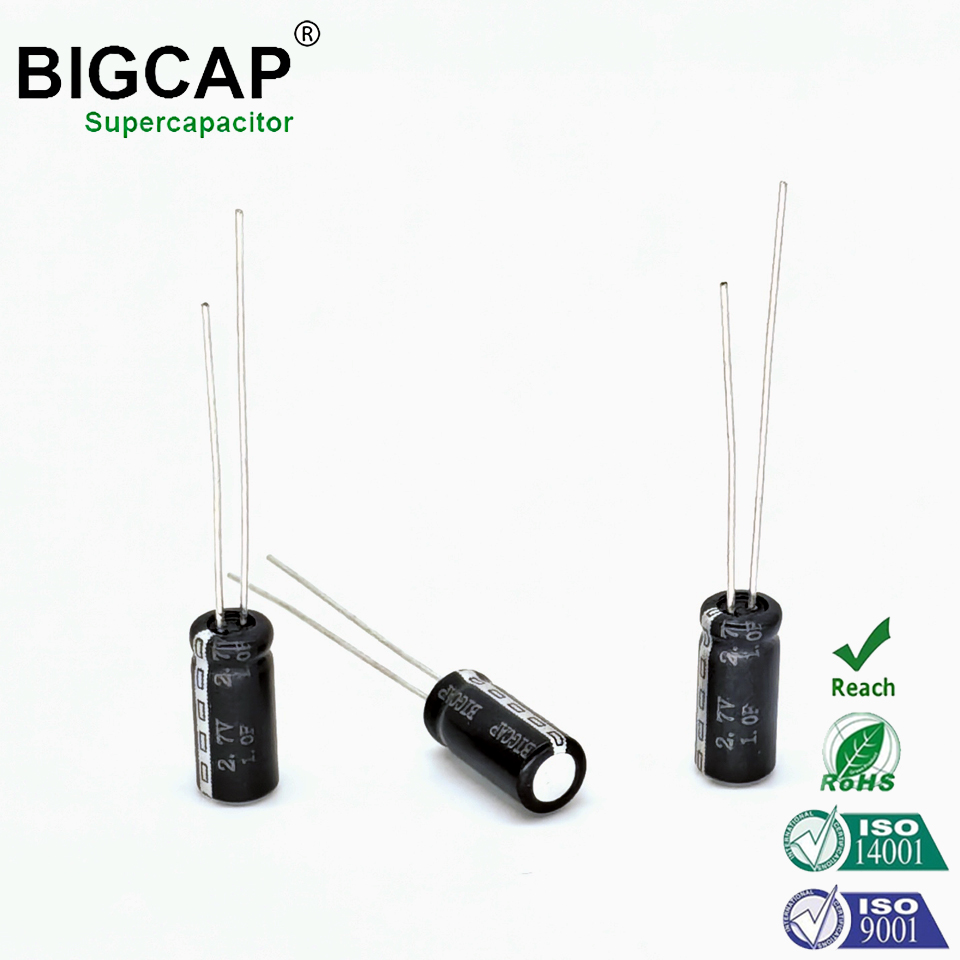

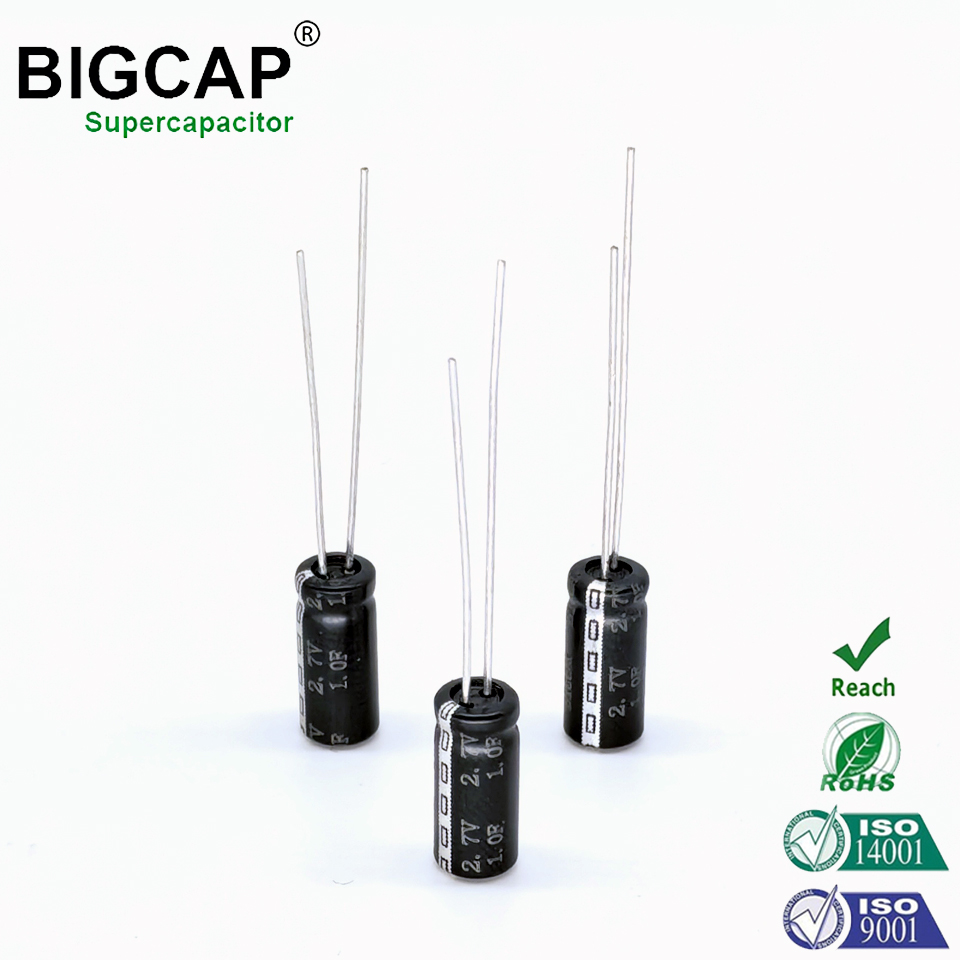

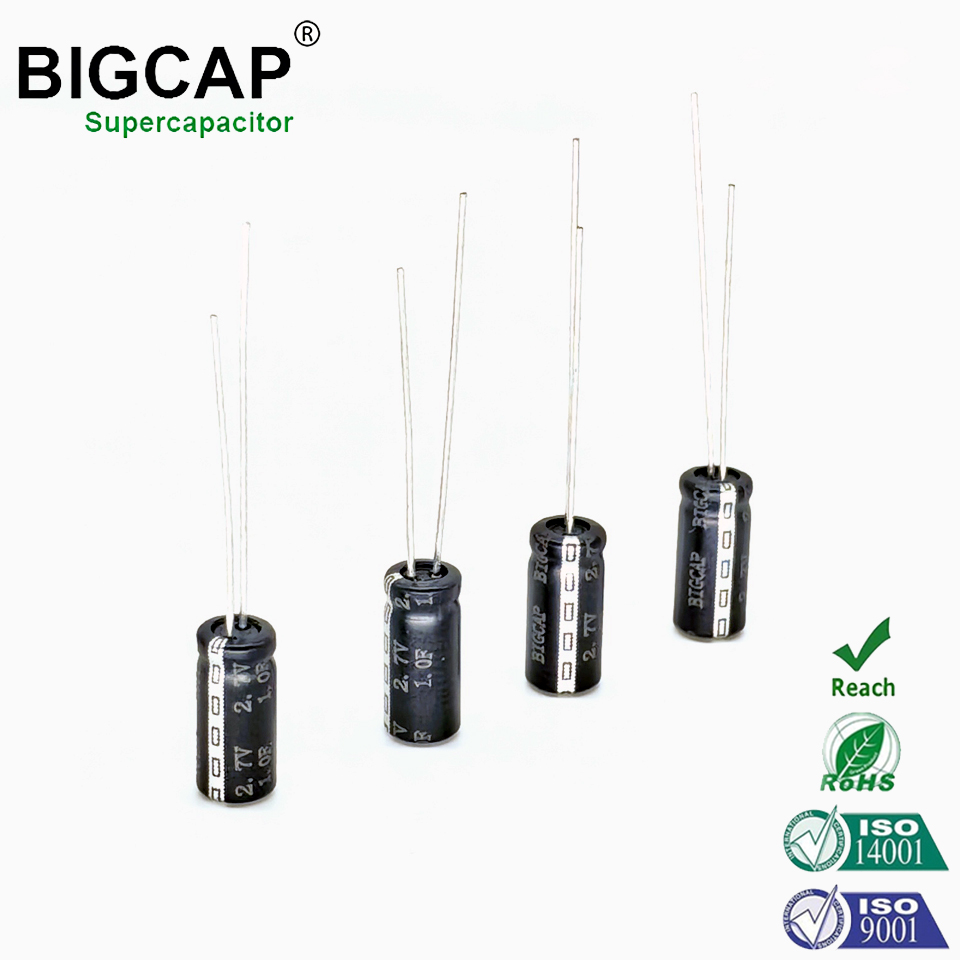

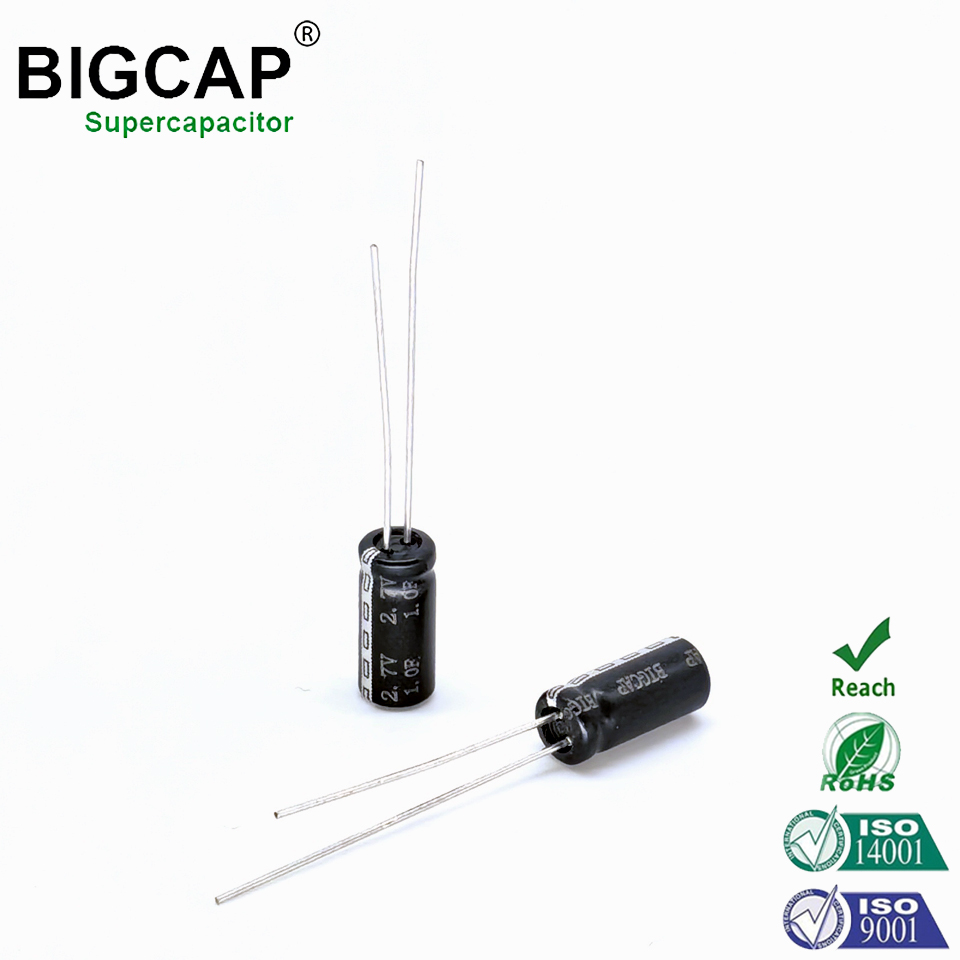

Images of BUP Series 2.7v 1f Super Capacitor
BUP Series Large Capacitance Super Capacitor

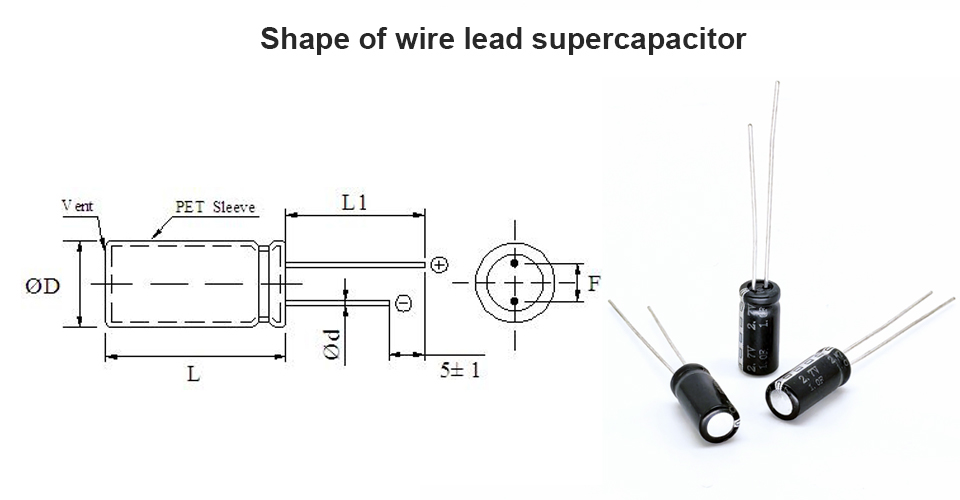

Model Number | Rated Voltage (V dc) | Capacitance (F) | ESR（Max），Ω | Dimension(mm) | ||||
AC@1kHz | DC | ΦD | H | P±0.5 | ||||
BUP002R7L504FA | 2.7 | 0.5 | 800 | 1200 | 5 | 9.8 | 2.0 | 28 |
BUP002R7L155FA | 2.7 | 1.5 | 350 | 525 | 6.3 | 12 | 2.5 | 28 |
BUP002R7L205FA | 2.7 | 2.0 | 300 | 450 | 8 | 13 | 3.5 | 30 |
BUP002R7L455FA | 2.7 | 4.5 | 90 | 135 | 8 | 19 | 3.5 | 30 |
BUP002R7L505FA | 2.7 | 5.0 | 70 | 105 | 8 | 24 | 3.5 | 30 |
BUP002R7L705FA | 2.7 | 7.0 | 80 | 120 | 10 | 20 | 5.0 | 30 |
BUP002R7L805FA | 2.7 | 8.0 | 45 | 67.5 | 8 | 32 | 3.5 | 30 |
BUP002R7L106FA | 2.7 | 10 | 65 | 97.5 | 10 | 25 | 5.0 | 30 |
BUP002R7L126FA | 2.7 | 12 | 60 | 90 | 10 | 27 | 5.0 | 30 |
BUP002R7L166FA | 2.7 | 16 | 45 | 67.5 | 12.5 | 21 | 5.0 | 28 |
BUP002R7L186FA | 2.7 | 18 | 40 | 60 | 12.5 | 26 | 5.0 | 30 |
BUP002R7L206FA | 2.7 | 20 | 30 | 45 | 12.5 | 34 | 5.0 | 30 |
BUP002R7L206FC | 2.7 | 20 | 40 | 60 | 16 | 20 | 7.5 | 30 |
BUP002R7L226FA | 2.7 | 22 | 30 | 45 | 16 | 21 | 7.5 | 30 |
BUP002R7L306FA | 2.7 | 30 | 35 | 52.5 | 12.5 | 34 | 5.0 | 30 |
BUP002R7L506FA | 2.7 | 50 | 30 | 45 | 16 | 34 | 7.5 | 30 |
BUP002R7L606FC | 2.7 | 60 | 30 | 45 | 18 | 34 | 7.5 | 30 |
BUP002R7L706FA | 2.7 | 70 | 30 | 45 | 18 | 41 | 7.5 | 30 |
BUP002R7L107FA | 2.7 | 100 | 20 | 30 | 18 | 45 | 7.5 | 30 |
Please advise your required super capacitor specifications, so we can recommend suitable items and provide the corresponding official datasheet.
Advantages of 2.7V 1F Super Capacitor
1.High energy density
The 2.7V 1F Super Capacitor Car Audio with winding structure features higher energy density, perfectly fit for large-capacity energy storage scenarios.
2.Low internal resistance
This 2.7V 1F Super Capacitor Car Audio adopts ultra-low internal resistance design, realizing fast charge and discharge and reducing extra energy loss.
3.Long cycle lifespan
The 2.7V 1F Super Capacitor Car Audio boasts outstanding cycling stability, sustaining frequent charge-discharge without performance degradation.
Wide temperature adaptability
4.The 2.7V 1F Super Capacitor Car Audio runs reliably and keeps steady output even under tough temperature environments.
5.Fast charge & high-power discharge
The 2.7V 1F Super Capacitor Car Audio offers rapid charging and strong high-current discharge capacity for instant power supply demand.
6.Low self-discharge performance
The 2.7V 1F Super Capacitor Car Audio has tiny power leakage, preserving electric energy efficiently during standby status.
7.Compact space-saving design
The 2.7V 1F Super Capacitor Car Audio owns compact winding layout, convenient to install in narrow equipment space.
8.High operational stability
The 2.7V 1F Super Capacitor Car Audio maintains consistent performance, ensuring dependable long-term continuous operation.
9.Eco-friendly & safe
The 2.7V 1F Super Capacitor Car Audio contains no harmful materials, conforming to environmental norms for safe industrial application.
BIGCAP SERIES
BCT Series Super Capacitor—For -25°C to +85°C
BCT 1.0F Super Capacitor
BCT 0.1F Super Capacitor
BCT 0.33F Super Capacitor
BIGCAP BCE Series Coil Cell Super Capacitor
H-Type Coil Cell Super Capacitor
V-Type Coil Cell Super Capacitor
C-Type Coil Cell Super Capacitor
BGW Series Coin Cell Super Capacitor-Full Sealed Leakage-Proof
1.5F Coin Cell Super Capacitor
0.47F Coin Cell Super Capacitor
0.22F Coin Cell Super Capacitor
Precision Potting Series Super Capacitor, Leak-proof & Anti-aging
BIGCAP Precision Potting Super Capacitor
BIGCAP Precision Potting Super Capacitor
Combined Winding Super Capacitor For -40℃~+85℃
Combined Winding 1f Super Capacitor
Combined Winding 2.5f Super Capacitor
Full Sealed Combined Super Capacitor, Leak-proof & Anti-aging
Full Sealed Combined 1.5F Super Capacitor
Full Sealed Combined 2.5F Super Capacitor
Single Winding 2.7V/3.0V Super Capacitor
Single Winding 2.7 V Super Capacitor
Single Winding 2.7 V Super Capacitor
Large Capacitance 2.7V/3.0V Super Capacitor
2.0F 3.0V Super Capacitor
150F/470F/500F 2.7 V Super Capacitor
BIGCAP Super Capacitor Module
12.5V 2F Super Capacitor Module
12V 25F Super Capacitor Module
Lithium-ion Super Capacitor with Large Capacitance
100F Lithium-ion Super Capacitor
Lithium-ion Super Capacitor
Application of Winding Type Super Capacitor
BIGCAP 2.7V/3.0V winding super capacitor boasts strong compatibility, suitable for diverse industrial applications.
This cylindrical super capacitor is widely applied in below fields and devices:
1.New energy power supply systems
2.Electric vehicles and supporting facilities
3.Industrial emergency backup power
4.UPS uninterruptible power supplies
5.Energy harvesting and recovery systems
