Features of BIGCAP 500f 2.7V Ultracap Supercapacitor
1.Cylindrical shape structure, Winding types;
2.Ulta-low ESR for high power density ,Large capacitance for high energy density;
3.Long charge-discharge cycle life; (500,000 times)
4.Ultra-low internal resistance,suitable for high power discharge.
5.High voltage up to 2.7V/3.0V,under the same conditions with high reliability.

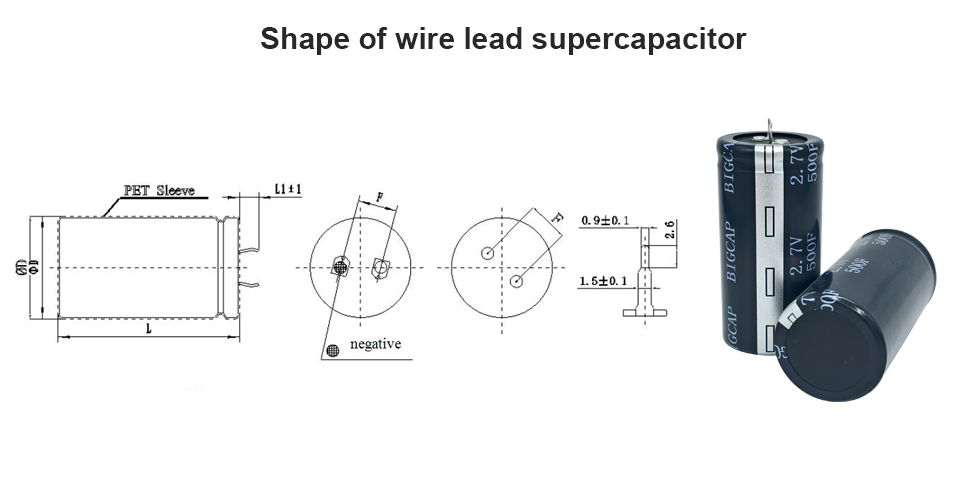

Drawing of 500f 2.7V BIGCAP Best Super Capacitor
BIGCAP Biggest Super Capacitor (BUP Series,Large Capacitance)
| Part Number | Nominal Voltage V DC | Capacitance F | MAX ESR 1kHz, mΩ | ΦD×L ±1.0(mm) | Lead space F±0.5 (mm) |
| BUP002R7S127FE | 2.7 | 120 | 12 | 22×45.5 | 10 |
| BUP002R7S227FA | 2.7 | 220 | 10 | 30.6×50 | 10 |
| BUP002R7S277FA | 2.7 | 270 | 8 | 30.6×50 | 10 |
| BUP002R7S337FA | 2.7 | 330 | 8 | 30.6×54 | 10 |
| BUP002R7S407FA | 2.7 | 400 | 8 | 35.6×61.5 | 10 |
| BUP002R7S507FE | 2.7 | 500 | 3 | 35.6×72 | 10 |
| BUP002R7C407FA | 2.7 | 400 | 3 | 35.6×61.5 | 14 |
| BUP002R7C407FB | 2.7 | 400 | 8 | 35.6×61.5 | 14 |
| BUP002R7L447FA | 2.7 | 470 | 4 | 35.6×59 | 14 |
| BUP002R7S507FE | 2.7 | 500 | 3 | 35.6×72 | 14 |
| BUP002R7M407FA | 2.7 | 400 | 3 | 35.6×61.5 | 14.5 |
| BUP002R7M477FA | 2.7 | 470 | 4 | 35.6×59 | 14.5 |
| BUP002R7M507FA | 2.7 | 500 | 3 | 35.6×72 | 14.5 |
| BUP003R0S127FE | 3.0 | 120 | 12 | 22.4×45.5 | 10 |
| BUP003R0S227FA | 3.0 | 220 | 10 | 30.6×50 | 10 |
| BUP003R0S277FA | 3.0 | 270 | 8 | 30.6×50 | 10 |
| BUP003R0S337FA | 3.0 | 330 | 8 | 30.6×54 | 10 |
| BUP003R0S407FA | 3.0 | 400 | 8 | 35.6×61.5 | 10 |
| BUP003R0S507FA | 3.0 | 500 | 3 | 35.6×72 | 10 |
| BUP003R0C407FA | 3.0 | 400 | 3 | 35.6×61.5 | 14 |
| BUP003R0C407FB | 3.0 | 400 | 8 | 35.6×61.5 | 14 |
| BUP003R0C477FA | 3.0 | 470 | 4 | 35.6×59 | 14 |
| BUP003R0S507FE | 3.0 | 500 | 3 | 35.6×72 | 14 |
| BUP003R0M407FA | 3.0 | 400 | 3 | 35.6×61.5 | 14.5 |
| BUP003R0M407FA | 3.0 | 470 | 4 | 35.6×59 | 14.5 |
The above specifications are for reference only.
Please advise your required product specifications,
so we can recommend suitable items and provide the corresponding official datasheet.
BIGCAP SERIES SUPERCAPACITOR
BGW Series Coin Cell Ultracap Supercapacitor—Full Sealed Leakage-Proof
BGW 1.5F Coin Cell Ultracap Supercapacitor
BGW 0.47F Coin Cell Ultracap Supercapacitor
BGW 0.22F Coin Cell Ultracap Supercapacitor
BCE Coin Cell Ultracap Supercapacitor (C,H,V Type)
H-Type Coin Cell Ultracap Supercapacitor
V-Type Coin Cell Ultracap Supercapacitor
C-Type Coin Cell Ultracap Supercapacitor
BCT Coin Cell Ultracap Supercapacitor For -25°C to +85°C
1.0F Coin Cell Ultracap Supercapacitor
0.1F Coin Cell Ultracap Supercapacitor
0.33F Coin Cell Ultracap Supercapacitor
Combined Winding Ultracap Supercapacitor For -40℃~+85℃
Combined Winding 0.22F Best Super Capacitor
Combined Winding 1.0F Best Super Capacitor
Full Sealed Combined Best Super Capacitor, Leak-proof & Anti-aging
5.5V 1.5F Ultracap Supercapacitor
5.5V 2.5F Ultracap Supercapacitor
Precision Potting Leak-proof Ultracap Supercapacitor
Precision Potting 10F Ultracap Supercapacitor
Precision Potting 2.7V Ultracap Supercapacitor
Single Winding 2.7V/3.0V Ultracap Supercapacitor
Single Winding 0.5F Ultracap Supercapacitor
Single Winding 1.0F Ultracap Supercapacitor
Large Capacitance 2.7V/3.0V Ultracap Supercapacitor
3.0V 2.0F Ultracap Supercapacitor
2.7V 150/470/500F Ultracap Supercapacitor
BIGCAP Biggest Super Capacitor Module
30V 5F Biggest Super Capacitor Module
12V 25F Biggest Super Capacitor Module
Lithium-ion BIGCAP Super Capacitor with Large Capacitance
100F Lithium-ion BIGCAP Super Capacitor
Lithium-ion BIGCAP Super Capacitor
BIGCAP COMPANY PROFILE
Established in 2013, Liaoning Brother Electronic Technology Co., Ltd. is a professional core manufacturer focusing on BIGCAP Super Capacitor. We have 13 years of mature production experience, backed by 26 years of profound industrial R&D strength.
We run a 12,000-square-meter modern production base, fitted with 8 full production lines and more than 100 fully automatic production devices. The company owns over 50 independent intellectual property patents, with an annual output capacity close to 100 million units.
Our flagship BIGCAP Super Capacitor features large capacitance, excellent power density, long service life and steady low temperature resistance.
With exclusive sealing structure, the Super Capacitor can operate continuously for more than 16 years. All products have obtained ISO9001 quality management system and ISO14001 environmental management system certifications, and comply with RoHS standards. Our high-quality products gain consistent approval and favorable feedback from clients worldwide.
Applications of BIGCAP Super Capacitor
Smart water meter, Smart electricity meter,Smart energy meter,VCR, RAM, Radio,TV set,DVD,GPS,Electric toy, LED-lighting device,Telephone, intelligent door lock,electric cooker,cell phone,electric water heater,self-powered super flashlight,Intelligent instrument etc.
CERTIFICATES
RoHs
REACH
ISO14001-2015
ISO9001-2015
PACKAGING
Paper Box Packing, Partitioned Paper Box Packing, Blister Tray Packing, Poly Bag Packing, K-Bend Tape & Reel, Radial Lead Tape & Reel, Axial Lead Tape & Reel
SHIPPING & SERVICE
1.100% on-time delivery
2.Multiple shipping options: air, sea, railway and international express
3.Responsive after-sales service with timely problem solving
4.Regular product follow-up inspection to ensure stable performance
5.Professional tech support and customized solutions available
FAQ
A: Yes, we can print your own logo on the goods or the packing box.
BIGCAP is a professional manufacturer of supercapacitor based in China. Established in 2013, BIGCAP has grown steadily over decade years. With plant area of 12000 square meters, expanding our operations and diversifying our product range over 300 series. Today, we have a strong presence in both domestic and international markets, serving customers in over 50 countries.
1. Fast charging and discharging time； 2. Long Cycle life over 500,000 times； 3. High power density； 4. Wide temperature range:-25℃~+85℃； 5. Low maintenance； 6. Environmentally friendly. 7.Comply with REACH & ROHS Satandard
We offer 10 pcs free samples per series for your evaluation and the buyer cover the express cost.
BIGCAP produce supercapacitor, also known as ultracapacitor or double-layer capacitor, is an energy storage device that can store and release energy much faster than a conventional battery. BIGCAP mainly produce Coin type/ Winding Type,/ Modules Type/ Lithiun Ion Type and Hybrid Type Supercapacitor.
From Smart Meter(Electric Meter/ Water Meter/ Gas Meter), Microgrid, Rail Transit, New Energy(Wind Energy/ Solar Energy), Electric Vehicles, Medical Equipment, UPS, Energy Harvesting Systems, Industrial Power Backup, our products can be used in various industries and applications.
